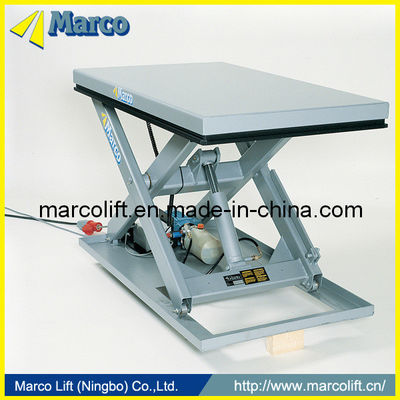

Customized Request 0.5-1 Ton Marco Single Scissor Lift Table with CE Certification
Product Details
| Model NO.: | E. G.: M0-010055-D1# | Feature: | Insulating |
|---|---|---|---|
| Transport Package: | Wooden Pallet | Specification: | CE |
| Trademark: | Marco | Origin: | Ningbo, China |
| HS Code: | 8428909090 | Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | Weight Level |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |
Product Description
The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance.
Main Specification:
1.Standard Options
Pump: Europe brand
Control box- dead man control with up/down/E-stop
Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve
Sealing kit for cylinder: SKF brand
Motor: Hoyer motor, protection IP55
Scissor arm: Q345B
Hydraulic hose/fitting: Eaton
Paint: Finland brand - Tikkurila
2.Options extra:Depends on your require
Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
| Hot sales for 0.5-1 Ton Marco single lift table with CE approved: | ||||||||
| Art.No. | Type | Capacity ( kg) | Platform (L*W) | Lift Height (mm) | Own Height (mm) | Lift time (s) | Motor (kw) | Weight (kg) |
| 860000 | M0-010055-D1# | 500 | 800*600 | 500 | 180 | 9 | 0.75 | 130 |
| 860001 | M1-005090-D1 | 500 | 1350*800 | 900 | 180 | 20 | 0.75 | 195 |
| 861001 | M1-010090-D1B | 500 | 1350*1000 | 900 | 180 | 20 | 0.75 | 200 |
| 860002 | M1-005125-D1 | 500 | 1800*800 | 1250 | 220 | 33 | 0.75 | 225 |
| 860003 | M2-005160-D1 | 500 | 2250*800 | 1600 | 220 | 33 | 0.75 | 370 |
| 860004 | M1-010055-D1# | 1000 | 1000*800 | 550 | 180 | 11 | 0.75 | 170 |
| 860010 | M1-010090-D1 | 1000 | 1350*800 | 900 | 180 | 20 | 0.75 | 195 |
| 862010 | M1-010090-D2 | 1000 | 1350*1200 | 900 | 180 | 20 | 0.75 | 220 |
| 861010 | M1-010090-D1B | 1000 | 1350*1000 | 900 | 180 | 20 | 0.75 | 200 |
| 860011 | M1-010125-D1 | 1000 | 1800*800 | 1250 | 220 | 33 | 0.75 | 240 |
| 860012 | M2-010125-D2B | 1000 | 1800*1200 | 1250 | 235 | 30 | 1.1 | 370 |
| 860013 | M2-010160-D2 | 1000 | 2250*1000 | 1600 | 235 | 30 | 1.1 | 400 |
| 860014 | M2-010160-D2B | 1000 | 2250*1500 | 1600 | 300 | 30 | 1.1 | 490 |
Product Highlights
Single scissor lift table have multi-purpose applications and are normally used to solve issues with handling, difference in levels, production and logistic areas! The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance. Main Specification: 1.Standard Options Pump: Europe brand Control box- dead man control with up/down/E-stop Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot
