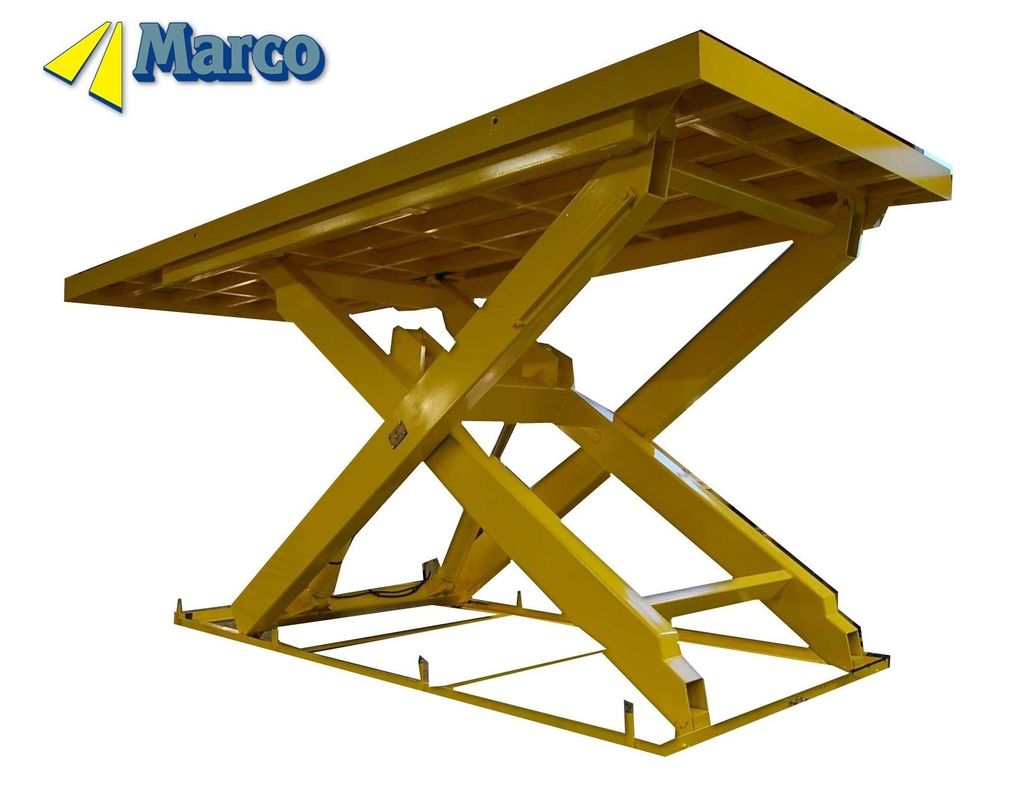

M7 Heavy Duty Stationary Hydraulic Scissor Lift Table Special Weight Level Capacity
Product Details
| Model NO.: | M7, 8-190317-D21 | Product Name: | Marco Heavy Duty Stationary Hydraulic Scissor Lift |
|---|---|---|---|
| Capacity: | 19000kg | Lift Stroke: | 3170mm |
| Closed Height: | 700mm | Transport Package: | Wooden Pallet |
| Specification: | 9025x3400mm (LxW) | Trademark: | Marco |
| Origin: | Ningbo | HS Code: | 8428909090 |
| Supply Ability: | 1200pieces/Year | Application: | Workshop Crane, Warehouse Crane, Building Crane |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | Special Weight Level |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |
Product Description
Product Description
| Mechanical data | |
| Capacity | 19000kg |
| Platform size | 9025x3400mm (LxW) |
| Frame size | 6000x2900mm (LxW) |
| Lift stroke | 3170mm |
| Closed height | 700mm |
| Weight | 9500kg |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
