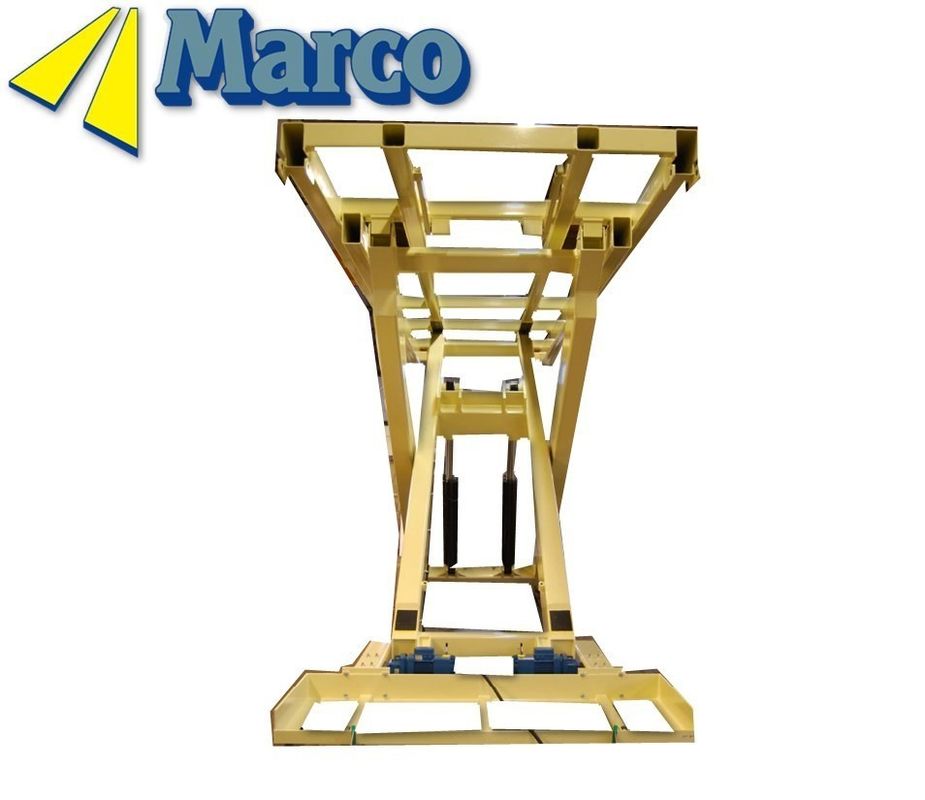

Vertical Hydraulic Scissor Lift Table with 18000kg Capacity and 2800mm Lift Stroke
Product Details
| Model NO.: | M7, 8-180280-D2 | Product Name: | Hydraulic Scissor Lift Driven Table Without Frame |
|---|---|---|---|
| Capacity: | 18000kg | Lift Stroke: | 2800mm |
| Closed Height: | 725mm | Transport Package: | Wooden Pallet |
| Specification: | 9000x2620mm (LxW) | Trademark: | Marco |
| Origin: | Ningbo | HS Code: | 8428909090 |
| Supply Ability: | 1200pieces/Year | Application: | Workshop Crane, Warehouse Crane, Building Crane |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | Special Weight Level |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |
Product Description
Product Description
| Table type: M7,8-180280-D2 | |
| Mechanical data | |
| Capacity | 18000kg |
| Platform size | 9000x2620mm (LxW) |
| Lift stroke | 2800mm |
| Closed height | 725mm |
| Weight | 7985kg |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Product Highlights
Marco Customized Heavy Duty Stationary Vertical Hydraulic Scissor Lift Driven Table Without Frame Product Description Table type: M7,8-180280-D2 Mechanical data Capacity 18000kg Platform size 9000x2620mm (LxW) Lift stroke 2800mm Closed height 725mm Weight 7985kg The table is intended to operate on a rail and is equipped with two electric engines for propulsion. Marco Standard Components All Marcolift standard lift tables are manufactured with high quality components to
