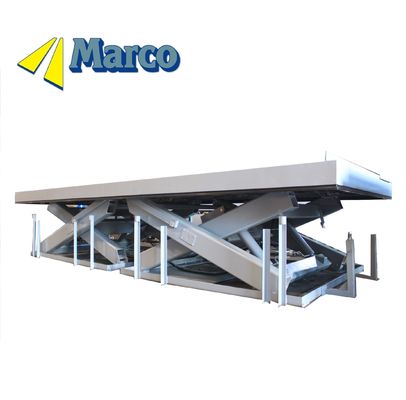

Hydraulic Scissors Lift Platform for Precise M5-050040-D4/2L Vehicle X-ray Inspection

All Category

Hydraulic Scissors Lift Platform for Precise M5-050040-D4/2L Vehicle X-ray Inspection

Detail Information

Product Description

Detail Information

Certification:

CE, ISO 9001

Model NO.:

M5-050040-D4/2L

Product Name:

Hydraulic Scissors Lift Platform For Vehicle

Capacity:

5000kg

Lift Stroke:

400mm

Transport Package:

Wooden Pallet

Trademark:

Marco

Origin:

Ningbo

HS Code:

8428909090

Supply Ability:

1200pieces/Year

Application:

Workshop Crane, Warehouse Crane, Building Crane

Lift Mechanism:

Scissor Lift

Carrying Capacity:

Special Weight Level

Moves:

Stationary

Driven Type:

Hydraulic

Running Mode:

Stationary

Customization:

Available | Customized Request

Product Description

Hydraulic Scissors Lift Platform for Lifting Vehicle X-ray Inspection on Frontier Inspection Station

Product Description

Hydraulic Scissors Lift Platform for Lifting Vehicle X-ray Inspection on Frontier Inspection Station

Equipment	Electric Hydraulic Scissors Platform
Model	M5-050040-D4/2L
Use	Vehicle X-ray Inspection on Frontier Inspection Station
Platform Size (closed)	6000x2500x800mm
Stroke (raise up)	400mm
Lifting capacity (SWL)	5000 Kg
Static load at low rest position	7000 Kg
Total time for fully raised up	20sec
Up and down position switch	Yes
Safety edge	Yes (Standard)
Wheel Lock (automatic roll off guard) on short sides	Yes (both end)
Installation location	Out door
Power Supply	380V/3ph/50HZ
Remote Control box	Standard UP/DOWN/E-STOP
Control	PLC control system for scissors lift including electric overloading ad lower hydraulic pressure, automatic roll off protection, warning alarm
Protection of Hydraulic power unit	IP65
Hydraulic Fluid	BIO FD (Standard)
Location for use	Inbound and Outbound Private Car Mobile X-Ray Operation Area

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
