Marco Vertical Scissor Lift Table with Hydraulic Lift Mechanism and Extendable Platform
Product Details
| Model NO.: | M5, 5-120130-D2 | Product Name: | Marco Vertical Hydraulic Scissor Lift Table |
|---|---|---|---|
| Capacity: | 12000kg | Lift Stroke: | 1300mm |
| Close Height: | 885mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |
Product Description
Product Description

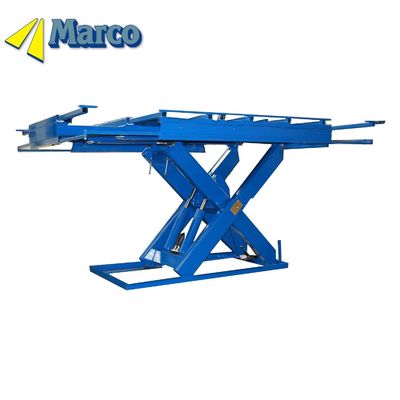

Marco Vertical Hydraulic Scissor Lift table with extendable platform
| Mechanical data | |
| Capacity | 12000 Kg |
| Platform size | 2880 x 1500 mm |
| Max Frame size | 4200 x 3080 mm |
| Frame size | 2600 x 1400 mm |
| Lift stroke | 1300 mm |
| Lifting time | 41 s |
| Closed height | 885 mm |
| Weight | 2540 kg |
Other
The lifting table is used in the paper industry for handling treated paper sheets
in various sizes. The sheets are used as isolation material in large electrical motors and transformers. The platform has bars on all four sides that can be extended to fit the sheet sizes. The safety frame is also extendable to cover all sizes as extra security.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
