Insulating Marco High Scissor Lift Table with CE Certification and Removable Segments
Product Details
| Model NO.: | M4-030230-D2/2H | Feature: | Insulating |
|---|---|---|---|
| Transport Package: | Wooden Package | Specification: | CE |
| Trademark: | Marco | Origin: | Ningb, China |
| HS Code: | 8428909090 | Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | Weight Level |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |
Product Description

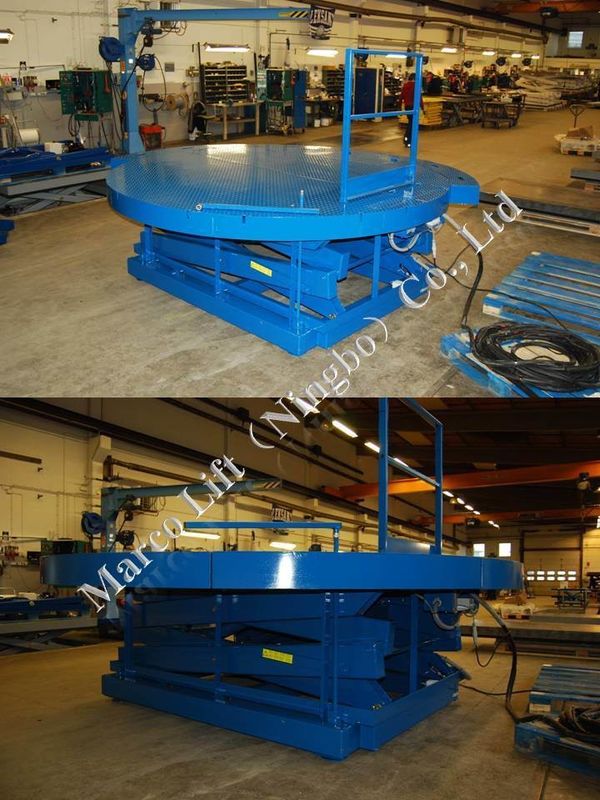

Table type: M4-030230-D2/2H
Mechanical data:
Capacity 3000kg
Platform size Ø3100 or Ø3600mm
Frame size 2500x1640mm (LxW)
Lift stroke 2300mm
Lifting time 41s
Closed height 1150±50mm (910+290)
Weight 2663kg
Other
This table will be used to brick up a furnace. It's operated by a built-in foot control.The table can be levelled with an adjustable foot in each corner of the frame and by removing segments on the outside of table, the diameter can be changed.
Main Specification:
1.Standard Options
Pump: Europe brand
Control box- dead man control with up/down/E-stop
Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve
Sealing kit for cylinder: SKF brand
Motor: Hoyer motor, protection IP55
Scissor arm: Q345B
Hydraulic hose/fitting: Eaton
Paint: Finland brand - Tikkurila
2.Options extra:Depends on your require
Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
Product Highlights
Table type: M4-030230-D2/2HMechanical data:Capacity 3000kgPlatform size Ø3100 or Ø3600mmFrame size 2500x1640mm (LxW)Lift stroke 2300mmLifting time 41sClosed height 1150±50mm (910+290)Weight 2663kgOtherThis table will be used to brick up a furnace. It's operated by a built-in foot control.The table can be levelled with an adjustable foot in each corner of the frame and by removing segments on the outside of table, the diameter can be changed. Main Specification:1.Standard
