Special Weight Level Marco Goods Lift Hydraulic Scissor Lift Platform at Two Fixed Levels
Product Details
| Model NO.: | M4-020285-2D/2H | Product Name: | Marco Goods Lift Hydraulic Scissor Lift Platform |
|---|---|---|---|
| Capacity: | 2000kg | Lift Stroke: | 2850mm |
| Close Height: | 700mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |
Product Description
Product Description

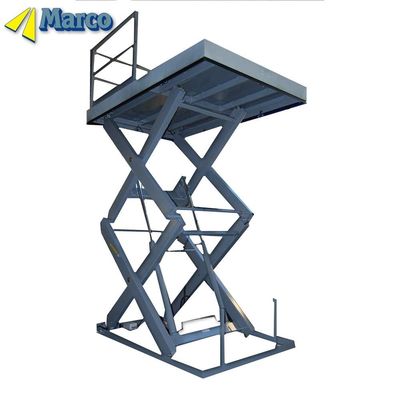

Marco Goods Lift Hydraulic Scissor Lift Platform Between Two Fixed Levels
| Mechanical data | |
| Capacity | 2000 Kg |
| Lift stroke | 2850 mm |
| Lifting time | 43 s |
| Closed height | 700 mm |
| Weight | 2050 kg |
？Twin boom barrier/handrails on platform
？Guide wheel roller, fitting in a guide channel in shaft, will stabilize platform in upper position from swinging in side direction
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
