CE Approved U-Shaped Scissor Lift Table with Hydraulic Drive and Competitive
Product Details
| Model NO.: | MLU-010075-D2 | Feature: | Insulating |
|---|---|---|---|
| Transport Package: | Wooden Pallet | Specification: | CE |
| Trademark: | Marco | Origin: | Ningbo, China |
| HS Code: | 8428909090 | Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | Weight Level |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |
Product Description

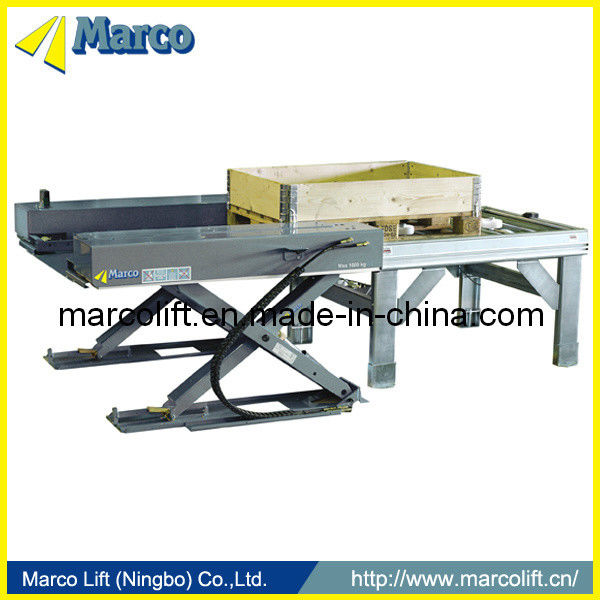

Marco U-shaped lift table is principally intended to be supplied for use in a working line coordinated production system.
In a production system, positioning and collection of pallets or other load carriers can be performed by the lift table. The goods are loaded/unloaded by a fork lift or pallet lifter on to the lift table, then after reaching the correct level, transfers the goods to the working line coordination production conveyor system via the use of a gravity or motor driven roller conveyor mounted on the lift table.
Due to the lift table low height no pit is required in the floor thus reducing installation costs.
The power pack is usually sited separately from the lift table so as not to limit the tilt table operation.
The Standard Marco U-shaped lift table has the following features:
lifting capacity 1000 kg
stroke 750 mm
platform 1500×1100 mm
Main Specification:
1.Standard Options
Pump: Europe brand
Control box- dead man control with up/down/E-stop
Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve
Sealing kit for cylinder: SKF brand
Motor: Hoyer motor, protection IP55
Scissor arm: Q345B
Hydraulic hose/fitting: Eaton
Paint: Finland brand - Tikkurila
2.Options extra:Depends on your require
Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
