Building Crane Scissor Lift Table for Swedish Church by Marco Customsized Hydraulic
Product Details
| Model NO.: | M3-030045-D2 | Product Name: | Marco Customsized Hydraulic Scissor Lift Table |
|---|---|---|---|
| Capacity: | 3000kg | Lift Stroke: | 450mm |
| Close Height: | 280mm | Transport Package: | Wooden Pallet |
| Specification: | 2700x2500 Mm | Trademark: | Marco |
| Origin: | Ningbo | HS Code: | 8428909090 |
| Supply Ability: | 1200pieces/Year | Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | Special Weight Level |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |
Product Description
Product Description
Marco Customsized Hydraulic Scissor Lift Table for Swedish Church
| Mechanical data | |
| Capacity | 3000 kg |
| Lift stroke | 450 mm |
| Lifting time | 16 s |
| Closed height | 280 mm |

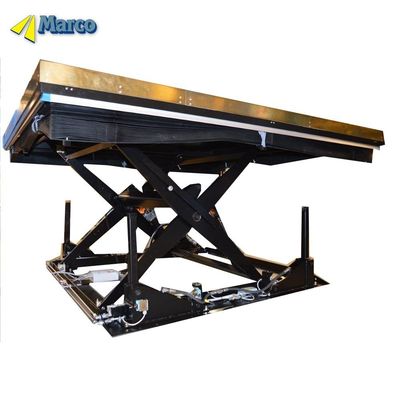

This scissor lift raises and lower the Church organ for a convenient height for the musicians The platform is covered with brass plates and the scissor mechanism is protected with a black bellow.
As extra security we have electro hydraulic operated support leg, securing the table for sinking at the top level.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
