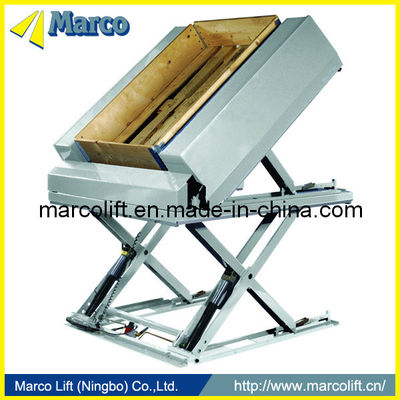

CE Approved Marco Tilt Scissor Lift Table MT-008045-D1/L for Stationary Applications
Product Details
| Model NO.: | E. G.: MT-008045-D1/L | Feature: | Insulating |
|---|---|---|---|
| Transport Package: | Wooden Pallet | Specification: | CE |
| Trademark: | Marco | Origin: | Ningbo, China |
| HS Code: | 8428909090 | Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | Weight Level |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |
Product Description
Marco tilt MLU is a MarcoLift U-shaped low-profile model provided with a built-in tilt function with a 40° tilt angle.
The tilt function is mainly applied in work places where it is necessary to gain better access to the goods thus creating an ergonomically proper working facility. Typical application examples are the control function at incoming and outgoing goods delivery and as production working stations. The load can be carried by pallets, crates or boxes.
The power pack is usually sited separately from the lift table so as not to limit the tilt table operation.
Marco tilt MT is a combination of lift table and separate tilt unit.
Marco tilt MT has the same features of those of the chosen lifting table. The tilt unit has a height of 180 mm. Tilt angle 45° or 90°.
The tilt unit can also be delivered, without the lift table, as separate units.
Main Specification:
1.Standard OptionsPump: Europe brand
Control box- dead man control with up/down/E-stop
Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve
Sealing kit for cylinder: SKF brand
Motor: Hoyer motor, protection IP55
Scissor arm: Q345B
Hydraulic hose/fitting: Eaton
Paint: Finland brand - Tikkurila
2.Options extra:Depends on your require
Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
| Hot sales for Marco tilt lift table with CE approved: | ||||||||
| Art.No. | Type | Capacity ( kg) | Platform (L*W) | Tilt angle (degreee) | Own Height (mm) | Lift time (s) | Motor (kw) | Weight (kg) |
| 860091 | MT-008045-D1/L | 800 | 1350*800 | 45 | 180 | 9 | 0.75 | 200 |
| 860092 | MT-006045-D2/K | 600 | 800*1350 | 45 | 180 | 9 | 0.75 | 200 |
| 860093 | MT-008090-D1/L | 800 | 1350*800 | 45 | 180 | 14 | 1.1 | 200 |
| 860094 | MT-006090-D1/K | 600 | 800*1350 | 45 | 180 | 14 | 1.1 | 200 |
