4500kg Capacity M5-045450-D2/3H Hydraulic Scissor Lift Table with European Efficiency
Product Details
| Model NO.: | M5-045450-D2/3H | Product Name: | 4.5ton High Hydraulic Scissor Lift Table |
|---|---|---|---|
| Capacity: | 4500kg | Lift Stroke: | 4500mm |
| Close Height: | 1500mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |
Product Description
Product Description

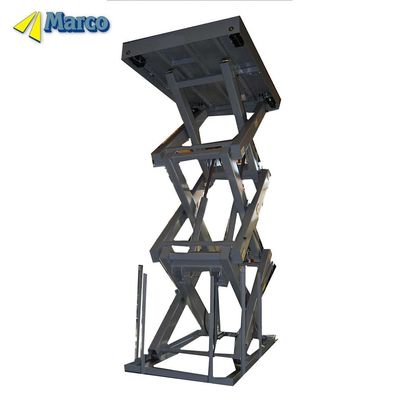

Marco 4.5 Ton High European Standard EN1570 Hydraulic Scissor Lift Table
| Mechanical data | |
| Capacity | 4500 kg |
| Lift stroke | 4500 mm |
| Lifting time | 112 s |
| Closed height | 1500 mm |
| Weight | 3625 kg |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
