4-6 Ton Marco Loading Dock Scissor Lift Table with CE Approved Customizable Options
Product Details
| Model NO.: | E. G.: M3.5-040130-D2K | Feature: | Insulating |
|---|---|---|---|
| Transport Package: | Wooden Pallet | Specification: | CE |
| Trademark: | Marco | Origin: | Ningbo, China |
| HS Code: | 8428909090 | Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | Weight Level |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |
Product Description

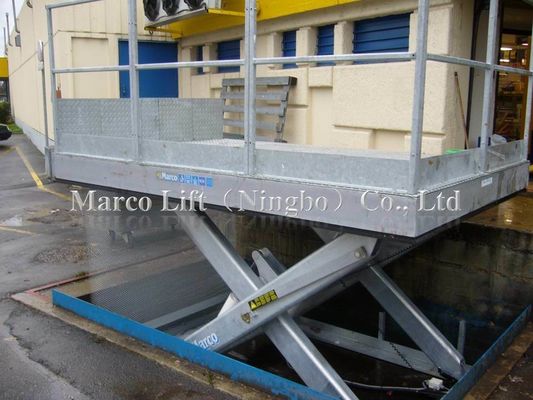

Marco loading dock is used on loading docks for the unloading and loading of vehicles.
Marco loading dock operates between the different levels of the vehicle and the loading dock.
It is designed for use in extremely difficult environmental and operational conditions and can also be provided for external use.
Marco loading dock are designed and equipped to withstand environmental and load stresses which frequently occur as point loads when vehicles cross the lift table.
As standard the loading dock tables are equipped with following:
platform in chequer plate
oilfilled minus side of the cylinders
reinforced platform with more profiles
service access hatch in platform
adjustable bottom stops for greater stability in lowered position
lifting lugs
two component paint finish to 120 my thickness
Main Specification:
1.Standard Options
Pump: Europe brand
Control box- dead man control with up/down/E-stop
Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot valve
Sealing kit for cylinder: SKF brand
Motor: Hoyer motor, protection IP55
Scissor arm: Q345B
Hydraulic hose/fitting: Eaton
Paint: Finland brand - Tikkurila
2.Options extra:Depends on your require
Our Services:
1. For all your inquires about us , we will reply you in detail within 24 hours
2. We own well-tranied and passional sales and after- sale services who can speak fluent Engligh language
3. We can provide customise solutions to particular requirements
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
| Hot sales for 4-6 Ton Marco loading dock table with CE approved: | ||||||||
| Art.No. | Type | Capacity ( kg) | Platform (L*W) | Lift Height (mm) | Own Height (mm) | Lift time (s) | Motor (kw) | Weight (kg) |
| 860339 | M3.5-040130-D2K | 4000 | 2000*1500 | 1300 | 305 | 27 | 2.2 | 755 |
| 860340 | M3.5-040130-D3K | 4000 | 2000*2000 | 1300 | 305 | 27 | 2.2 | 875 |
| 860367 | M4-040160-D2K | 4000 | 2500*1500 | 1600 | 450 | 26 | 4.6 | 1175 |
| 860342 | M4-040160-D2K | 4000 | 2500*2000 | 1600 | 450 | 26 | 4.6 | 1320 |
| 860343 | M4-040160-D2K | 4000 | 2500*2400 | 1600 | 450 | 26 | 4.6 | 1510 |
| 860344 | M4-040160-D2K | 4000 | 3000*2000 | 1600 | 450 | 25 | 4.6 | 1440 |
| 860346 | M4-040160-D2K | 4000 | 3000*2400 | 1600 | 450 | 25 | 4.6 | 1610 |
| 860347 | M4-040130-D2K | 6000 | 2250*1500 | 1300 | 450 | 26 | 4.6 | 1080 |
| 860348 | M4-040130-D2K | 6000 | 2250*2000 | 1300 | 450 | 26 | 4.6 | 1250 |
| 860349 | M4.5-060130-D2K | 6000 | 2500*1500 | 1600 | 450 | 32 | 4.6 | 1265 |
| 860352 | M4.5-060130-D2K | 6000 | 2500*2000 | 1600 | 450 | 32 | 4.6 | 1450 |
| 860353 | M4.5-060130-D2K | 6000 | 2500*2400 | 1600 | 450 | 32 | 4.6 | 1620 |
| 860350 | M4.5-060130-D2K | 6000 | 3000*2000 | 1600 | 450 | 32 | 4.6 | 1570 |
| 860362 | M4.5-060130-D2K | 6000 | 3000*2400 | 1600 | 450 | 32 | 4.6 | 1730 |
