9000kg Capacity Heavy Duty Hydraulic Scissor Lift Table for Stationary Applications
Product Details
| Model NO.: | M4, 5-090048-D2 | Product Name: | Heavy Duty Robust Hydraulic Scissor Lift Table |
|---|---|---|---|
| Capacity: | 9000kg | Lift Stroke: | 475mm |
| Close Height: | 540mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |
Product Description
Product Description

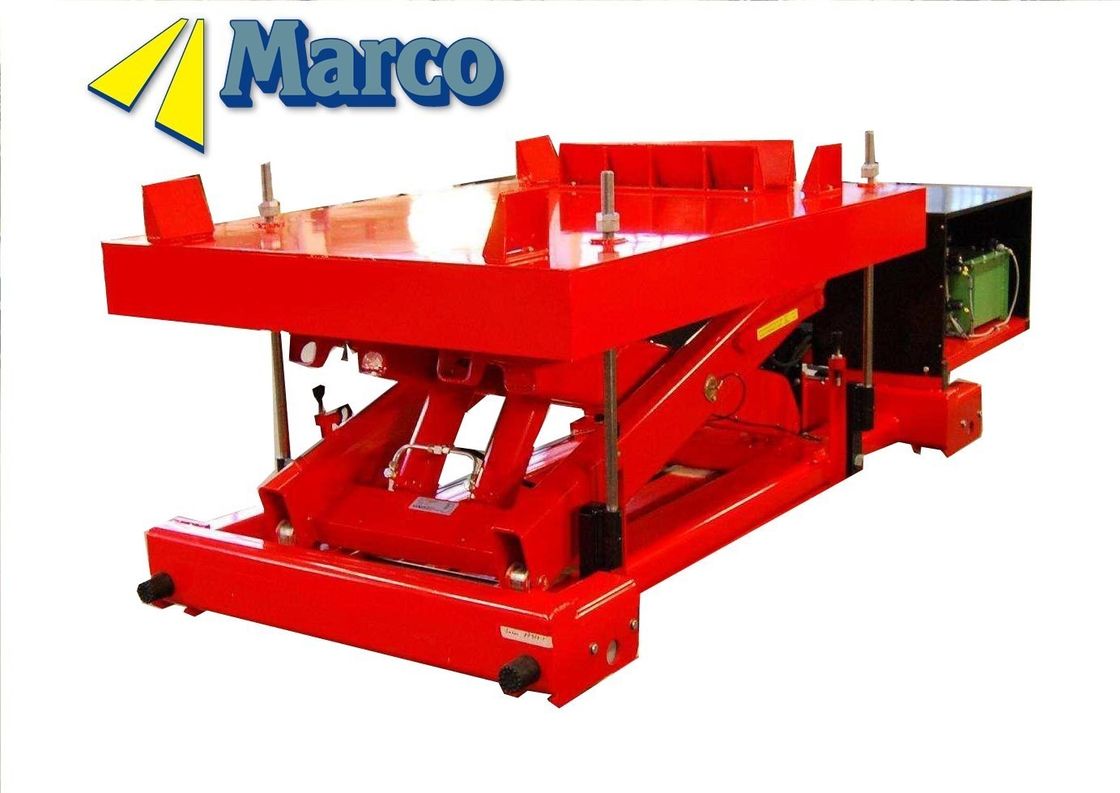

Heavy Duty Robust Hydraulic Scissor Lift Table
| Mechanical data | |
| Capacity | 9000kg |
| Lift stroke | 475mm |
| Lifting time | 34s |
| Closed height | 540mm (400+140) |
| Weight | 1543kg |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Product Highlights
Heavy Duty Robust Hydraulic Scissor Lift Table Product Description Heavy Duty Robust Hydraulic Scissor Lift Table Mechanical data Capacity 9000kg Lift stroke 475mm Lifting time 34s Closed height 540mm (400+140) Weight 1543kg Marco Standard Components All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation. Pump Bucher Motor Hoyer Denmark, protection IP55 Control Panel Marco standard control
