Special Weight Level Stand Welding Hydraulic Scissor Lift Platform with Customization
Product Details
| Model NO.: | M5, 8-150120-D2 | Product Name: | Hydraulic Scissor Lift Table With A Stand Welding |
|---|---|---|---|
| Capacity: | 15000kg | Lift Stroke: | 1200mm |
| Close Height: | 700mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |
Product Description
Product Description

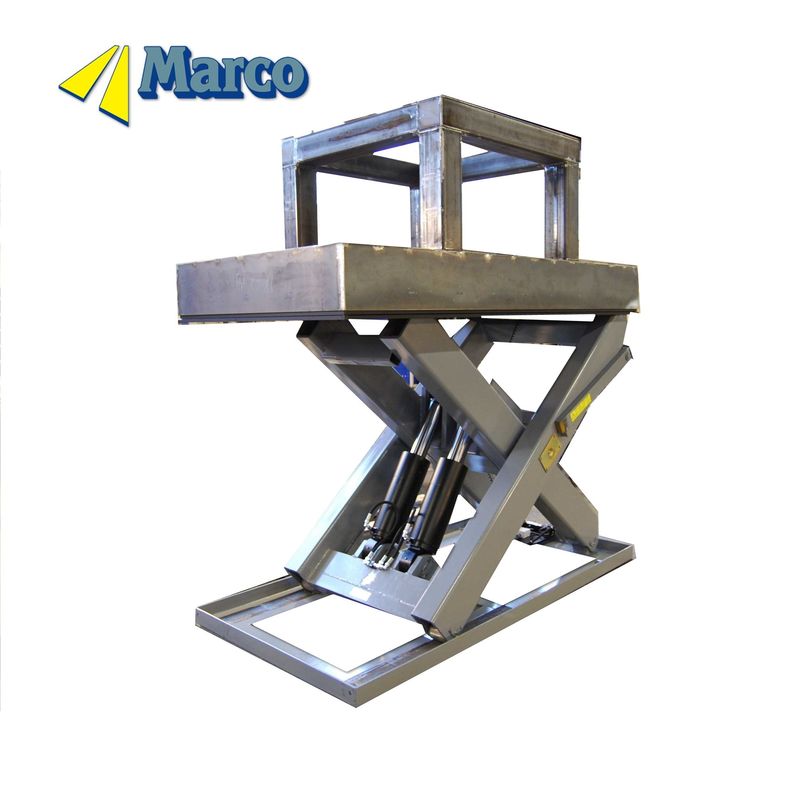

Marco Material Handling Equimpment Hydraulic Scissor Lift Platform with A Stand Welding
| Mechanical data | |
| Table type | M5,8-150120-D2 |
| Capacity | 15000kg |
| Lift stroke | 1200mm |
| Lifting time | 59s |
| Closed height | 700mm |
| Weight | 2750kg |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Product Highlights
Marco Material Handling Equimpment Hydraulic Scissor Lift Platform with A Stand Welding Product Description Marco Material Handling Equimpment Hydraulic Scissor Lift Platform with A Stand Welding Mechanical data Table type M5,8-150120-D2 Capacity 15000kg Lift stroke 1200mm Lifting time 59s Closed height 700mm Weight 2750kg Marco Standard Components All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in
