Scissor Lift Mechanism Hydraulic Working Platform with 1000kg Capacity and Attached Stair
Product Details
| Model NO.: | M4, 5-010175-D2 | Product Name: | Hydraulic Scissor Lift Working Platform |
|---|---|---|---|
| Capacity: | 1000kg | Lift Stroke: | 1400mm |
| Close Height: | 350mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |
Product Description
Product Description

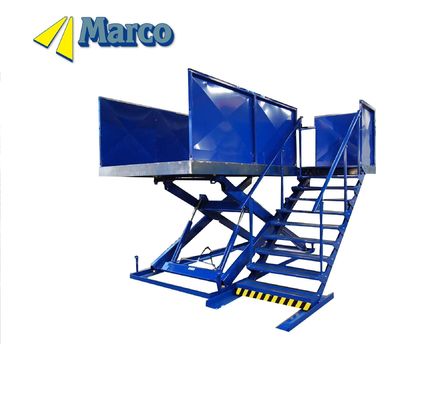

Marco Hydraulic Scissor Lift Working Platform With An Attached Stair
| Mechanical data | |
| Table type | M4,5-010175-D2 |
| Capacity | 1000kg |
| Lift stroke | 1750mm |
| Lifting time | 12s |
| Closed height | 350mm |
| Weight | 1145kg |
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
Product Highlights
Marco Hydraulic Scissor Lift Working Platform With An Attached Stair Product Description Marco Hydraulic Scissor Lift Working Platform With An Attached Stair Mechanical data Table type M4,5-010175-D2 Capacity 1000kg Lift stroke 1750mm Lifting time 12s Closed height 350mm Weight 1145kg Marco Standard Components All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation. Pump Bucher Motor Hoyer
M1-010125-D2 Ce Hydraulic Mini Scissor Lift with Handrail Running Mode Stationary
Marco Standard Components All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation. Pump Bucher Motor Hoyer Denmark, protection IP55 Control Panel Marco standard control box Sealing Sweden, SKF Cylinder Marco, with rapture valve and damping Limit switch USA, Suns Safety frame Aluminum with limit switch Scissor arm Q345B, profile steel Paint Finland, Tikkurila Hydraulic hose USA, Eaton Marco
Stationary 4 Tons Marco Twin Scissor Lift Table with Weight Level Carrying Capacity
When handling long and cumbersome items the lift table type Marco Twin Lift Table can offer the best solution. Marco Twin Lift Table is designed with two or multiple sets of scissors placed end to end to achieve the requested platform length and lifting capacity. In principle, this range consists of a combination of several Marco single scissors. The lifting stroke of the scissors set is created by a controlled synchronism to perform a parallel lifting motion.Main Specificati
Stationary Marco Twin Scissor Lift Table for Car Production Line in Automobile Sector
When handling long and cumbersome items the lift table type Marco Twin Lift Table can offer the best solution. Marco Twin Lift Table is designed with two or multiple sets of scissors placed end to end to achieve the requested platform length and lifting capacity. In principle, this range consists of a combination of several Marco single scissors. The lifting stroke of the scissors set is created by a controlled synchronism to perform a parallel lifting motion.Main Specificati
8-10 Ton Marco Single Scissor Lift Table with CE Certification and Insulating Design
Single scissor lift table have multi-purpose applications and are normally used to solve issues with handling, difference in levels, production and logistic areas! The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance. Main Specification:1.Standard Options Pump: Europe brandControl box- dead man control with up/down/E-stop Cylinder: Marco designing, OEM made, including rupture valve, damping action and pilot
