Stationary Hydraulic Scissor Lift Table with Roll-off Guard and Chain Mesh Heavy Duty
Product Details
| Model NO.: | M2, 5-020060-D2 | Product Name: | Hydraulic Scissor Lift Table With Roll-off Guard |
|---|---|---|---|
| Capacity: | 2000kg | Lift Stroke: | 600mm |
| Close Height: | 260mm | Transport Package: | Wooden Pallet |
| Trademark: | Marco | Origin: | Ningbo |
| HS Code: | 8428909090 | Supply Ability: | 1200pieces/Year |
| Application: | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | Special Weight Level | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |
Product Description
Product Description

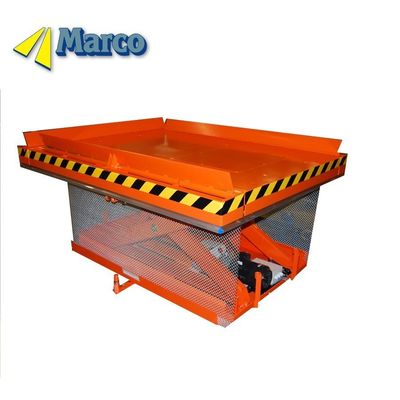

Hydraulic Scissor Lift Table with Roll-off Guard and Chain Mesh
| Mechanical data | |
| Capacity | 2000 kg |
| Lift stroke | 600 mm |
| Lifting time | 18 s |
| Closed height | 260 mm |
| Weight | 625 kg |
Other
The table will be used to move trolleys from one floor to another. It´s equipped with automatic roll-off guards on three sides to prevent the trolleys to fall down.
Below the platform you can see that the table also has mesh guard with collectors to protect the scissor arms.
Marco Standard Components
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
